Warranty: 3 Years
Place of Origin: Guangdong, China
Brand Name: GO-GOLD
Model Number: KG-PH25-1600
Usage: Vacuum Cleaner
Type: AC Motor
Torque: 10kg.f
Commutation: AC
Protect Feature: Totally Enclosed
Speed: 33000RPM
Efficiency: 36%-6%
Product Name: AC Vacuum Cleaner Motor

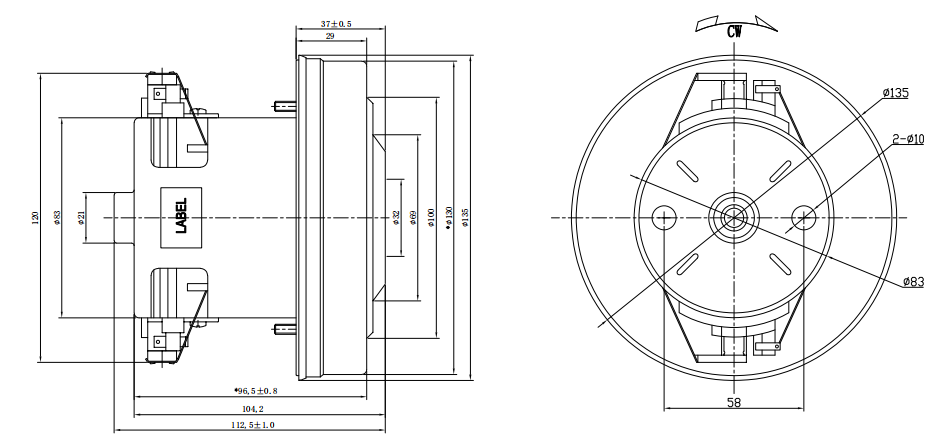

Drawings
Packaging & delivery
Port: SHENZHEN
| Quantity(pieces) | 1 - 1000 | 1001 - 10000 | >10000 |
| Lead time (days) | 15 | 30 | To be negotiated |

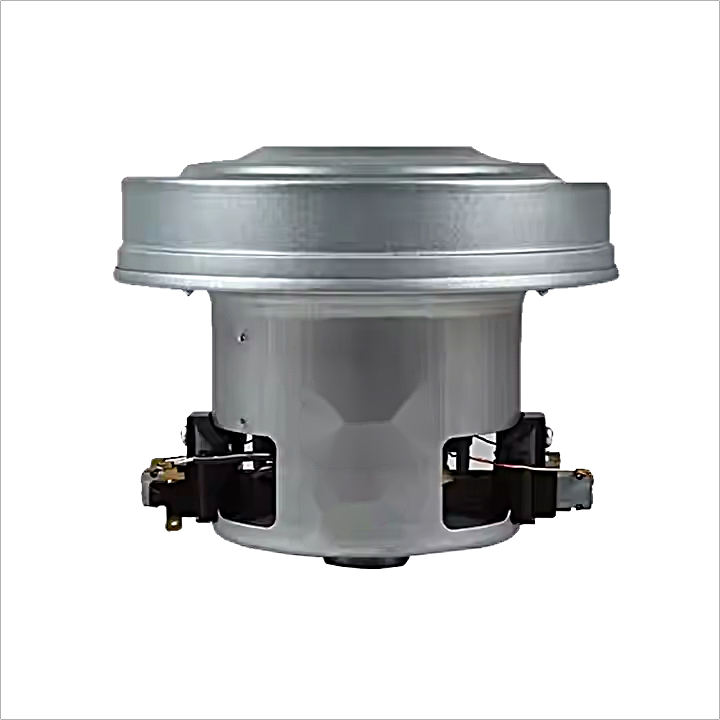

Motor Sample
AC Motor
An AC motor is a mechanical device used to convert mechanical energy into AC electrical energy. Due to the tremendous development of AC power systems, AC motors have become the most commonly used motor. Compared with DC motors, AC motors have a simple structure, are easy to manufacture, are more sturdy, and can be easily made into motors with high speed, high voltage, high current, and large capacity due to the lack of a commutator (see commutation for DC motors).
According to statistics, AC motors can be classified in the following two ways:
By Function
AC motors are usually divided into several categories based on their functions: AC generators, AC motors, and synchronous phase-shifting cameras. Due to the reversibility of the working state of the motor, the same motor can be used as both a generator and an electric motor.
It is not very accurate to divide motors into generators and electric motors, but some motors mainly operate as generators and others mainly operate as electric motors.
By variety
AC motors are divided into two categories by variety: synchronous motors and asynchronous motors. The speed ns of the synchronous motor rotor is the same as the speed of the rotating magnetic field, which is called synchronous speed. There is a strict relationship between ns and the frequency (f) of the connected AC power, as well as the number of magnetic poles (P) of the motor.
The advantages of large AC motors
1. High efficiency: AC motors have high efficiency and can convert electrical energy into mechanical energy with high efficiency.
2. Wide frequency range: The operating speed of AC motors can be adjusted within a certain range to meet different working requirements.
3. High starting torque: AC motors have a large starting torque and are suitable for applications that require a high starting torque.
3. Low maintenance cost: AC motors are usually structurally simple, easy to maintain, and have lower maintenance costs.
